Servo Motor Connector

Ningbo ACIT Electronics Co., Ltd. is a manufacturer of servo motor connectors, waterproof, aviation, military connectors and other products.The quality and price of our products have won the favor of many customers . Servo motor connector meet the GB5226-85 standard.

Send Inquiry

Product Description

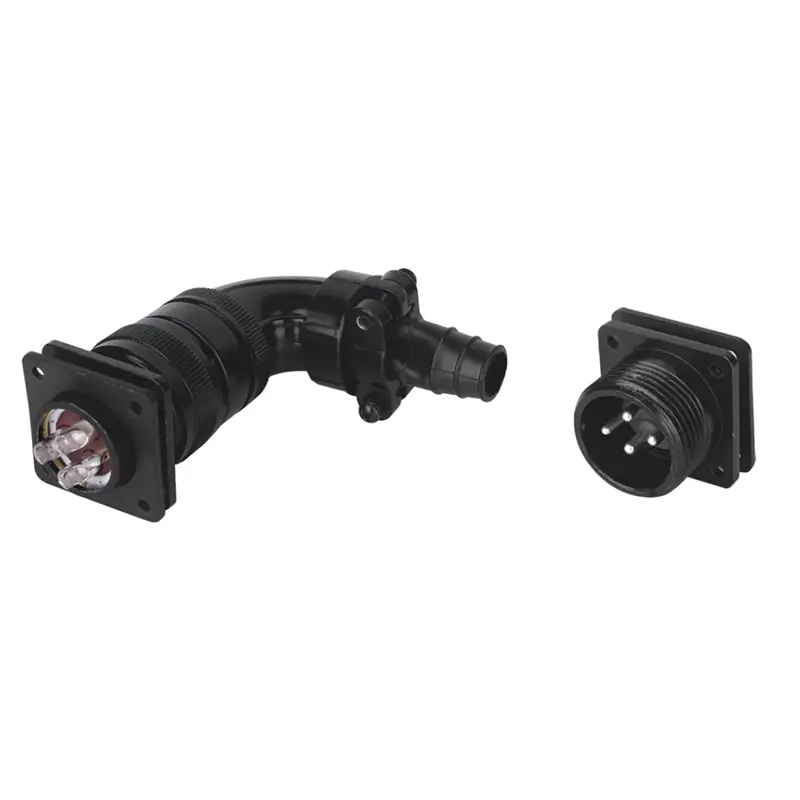

servo motor connector is suitable for the electric connection of servo motor power and control line. It is waterproof and dust-proof with grounding device. ,and they are are used for connect the power of electric mechanic equipment and control system .you can rest assured to buy R servo motor connector from our factory and we will offer you the best after-sale service and timely delivery.

Technical characteristics

Temperature

-55℃ ~  +125℃

Working voltage

250V

Endurance

500 Cycles

Protect class

IP 67

Shell material

Aluminum alloy

Insulator material

PBT

Contact material

Gold or silver plated brass

Insulation resistance

≥5000MΩ

Type

Contact

Plating

Current

Contact

resistance

I

1.5mm

Aluminium alloy

10A

2.5m Q2

II

2.5mm

Aluminium alloy

25A

1m 8

II

3.5mm

Aluminium alloy

50A

0.5m 2

IV

5.5mm

Aluminium alloy

100A

0.3m Q

Insulation resistance

Normal

High temperature

Moisture test

≥5000(mΩ)

≥1000(mΩ)

≥100(mΩ)



servo motor connector is suitable for the electric connection of servo motor power and control line. It is waterproof and dust-proof with grounding device. ,and they are are used for connect the power of electric mechanic equipment and control system .you can rest assured to buy R servo motor connector from our factory and we will offer you the best after-sale service and timely delivery.

Product Feature And Application

servo motor connector are water-proof and dust proof.can meet the requirement of electric mechanic production,the materials of insulator used the new style thermoplastics,can resistance the impact,high temperature,so it will not be melt or out of shape because of the high temperature.

Product quality and Certificate

The warranty period of servo motor connector is one year. it can be replaced free of charge if it has quality problems.

Product size of servo motor connector

Product order guide


YD   48     J  38  TP   PG

1     2      3   4    5    6



1.Serise:YD series connector

1.SType:20、28、32、40、48、55

2.SJ:pin of plug,K:pin of socket

3.SMonoblock Number: 7、13、26、31、38、42

4.ST:plug,Z:receptacle

5.SOutlet:

Product FAQ of servo motor connector

1. Can I have a sample order?

Yes, welcome sample order of YD servo motor connector to test and check quality.


2. What is your terms of payment?

Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.


3. What is the lead time?

It usually takes 10 days after received the advance payment.


4. What is your terms of packing?

it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.


5. How long is the warranty period

One year after delivery.
