Precision Connector

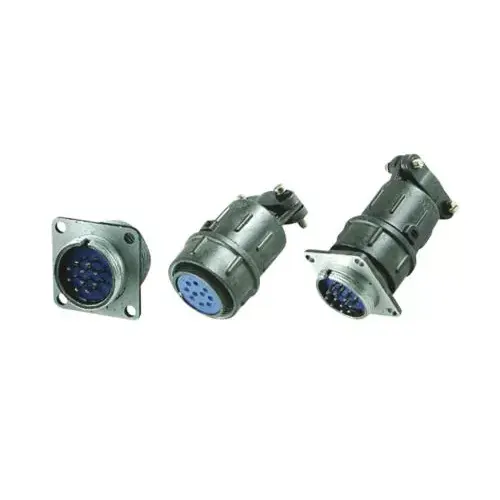

Ningbo ACIT Precision connector is a high-quality series of connector,suitable for electrical and radio equipment, cable to cable connection, it replaces type CX and type 2CX plug holder, Contact pairs are interchangeable if they have the same diameter, number, and position. Precision connector can be panel mounted and used.

Technical characteristics

Temperature		-55℃ ~  +100℃
Working voltage		400V
Endurance		500 Cycles
Shell material		Aluminum alloy
Insulator material		PBT
Contact material		Gold or silver plated brass
Insulation resistance		≥5000MΩ
Contact ϕ	ϕ0.8	ϕ1	ϕ1.5	ϕ2.5
Current	2A	5A	10A	25A
Contact ϕ	φ0.8	ϕ1	ϕ1.5	ϕ2.5
Resistance Contact	≤10m2	≤5mQ	≤2.5mQ	≤1m0

The warranty period of Precision connector is one year. it can be replaced free of charge if it has quality problems.Product Feature And Application

Precision connector，stable electrical conductivity,safe and reliable, applied to the aviation field to meet the moving or vibration environment requirements.widely used in aviation, navigation, computer, communications, petroleum exploration, navigation, anti-theft devices, transportation, machine and electronics and other fields.

Product quality and Certificate

Product size of  Precision connector

Product order guide

      X —   16  J  5   A  Q

      1         2   3  4   5   6

1.Identification Code：X series connector

2.Matching Dia of Receptacle: 14,16,22,24,30

3.Contacts Style:K-Socket  ,J- pin

4.Number of contacts： 4,7,10,19

5.T—plug，Z—receptacle ,A-Square Flange Receptacle,AP-CableRecepta

6.P-P shield shell  Q-Q normal
