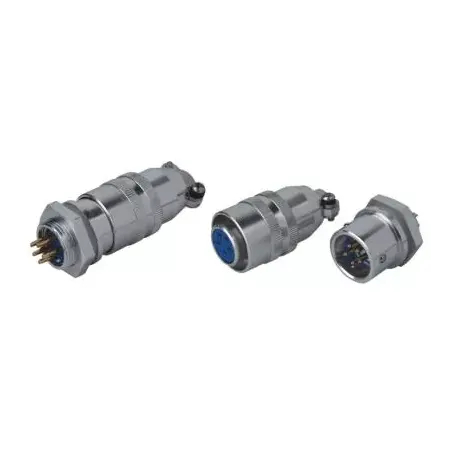

Medical Equipment Connector
  • Medical Equipment ConnectorMedical Equipment Connector

Medical Equipment Connector

Ningbo ACIT company is not only a supplier of medical connectors, there are many other series of connectors, such as aviation, military, railway connectors, and is a professional manufacturer with independent research and development of new products, accept customers to customize the sample. Medical equipment connector is a push-pull type structure of the product

Send Inquiry

Product Description

The Medical equipment connector from Ningbo ACIT, have the feature of quick connect,light weight,small size,the diagram is 12mm,there are3,4,5,7pins.the body are made of Al-alloy or nickel plated copper,are widely used for direct circuit or exchange circuit equipment of wireless and instrument.We have different production lines to meet different volume needs of customers, and can provide high quality and reasonable prices.

Technical characteristics

Temperature

-40℃ ~  +100℃

Working voltage

 250v

Endurance

500 Cycles

Protect class

IP 67

Shell material

Aluminum alloy,Copper nickel plated

Insulator material

PBT

Contact material

Gold plated brass

Insulation resistance

≥5000MΩ

Insulation resistance

Normal≥5000MΩDamp heat≥100MΩ

model

XS8

XS9

XS12

XS16

Contact resistance

  ≦5mΩ

Rated current

5A

3A

3A 10A

Rated voltage

   250V

the number of contacts

2,3,4

2,3,4,5

3,4.5,7

2,3.4.5.7,9


Product Feature And Application

The Medical equipment connector is suitable for communication,video, ship,high-speed rail and other instrument and meter neighborhood,the connection mode i steel ball plug and unplug,the product is small in size light in weight,good in conductivity, the socket is sealed ,easy to install and use .

Product quality and Certificate

The warranty period of Medical equipment connector is one year. it can be replaced free of charge if it has quality problems.

Product size of the Medical equipment connector

Receptacle

Product order guide


XS      16    K  4  T   NR

1       2   3  4   5    6



1.Name:XS series connector

2.Type: 6,12,16....

3.J-pin of plug,k-pin of socket

4.4.Number of contacts: 2, 3,4,5,6,7,8

5.T—plug,Z—cable receptacle

6.Shell Finish: NR- nickel plated

Product FAQ of Medical equipment connector

1. Can I have a sample order?

Yes, welcome sample order of Medical equipment connector to test and check quality.


2. What is your terms of payment?

Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.


3. What is the lead time?

It usually takes 10 days after received the advance payment.


4. What is your terms of packing?

it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.


5. How long is the warranty period

One year after delivery.
