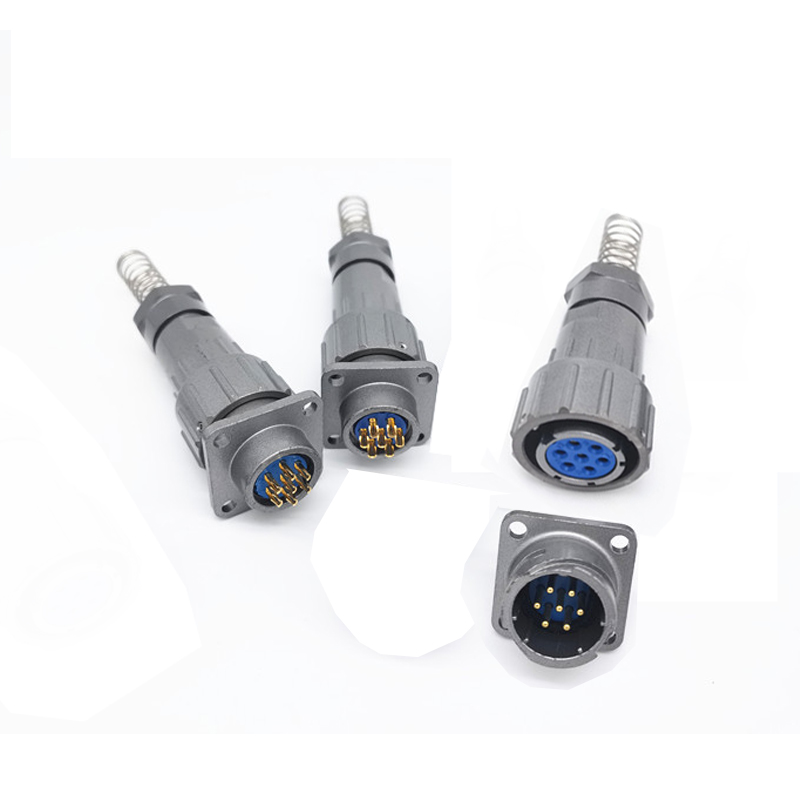

Underground power connector
  • Underground power connectorUnderground power connector

Underground power connector

Ningbo ACIT Electronics Co., Ltd. specializes in Underground power connector industry for more than 20 years, with good quality and short delivery time.The main products of the factory: electrical connection products: circular connectors, military aviation connectors, power connectors, waterproof connectors, we always put the interests of our customers in the first place. Under the premise of ensuring product quality, we provide various all-round services, constantly reform and innovate, and keep pace with the times.FQ series is Developed by Russian style connector FQ series.


Send Inquiry

Product Description

Product Introduction of Russian FQ Connector

Ningbo  ACITis a professional supplier, timely delivery, quality and quantity assurance .Underground power connectorseriesconforms to SJ/T10497 standards.Beside its waterproofing functions, It has the characters of high reliability, anti-vibration and high High sealability . The plug and the receptacle can be quickly and easily connected.

Technical characteristics

   Temperature             -55℃ ~  +100℃

   Working current         1.0mm-3A  ,1.5mm-10A,2.5mm-25A

   Working voltage         400V

   Contact resistance      1.0≤0.005Ω ,1.5≤0.0025Ω

   Shell material          Aluminum

Insulator material      NYLON

Contact material        Gold or silver plated brass

   Endurance               500 Cycles

   IP grade                The connector is subjected to 30 minutes of no water ingress in 1 meter deep water



Product Feature And Application

Underground power connector  bayonet waterproof circular connectors are widely used in various electronic equipment. Also they are very popular in LED display wire connection.

Product quality and Certificate

The warranty period ofUnderground power connector is one year. it can be replaced free of charge if it has quality problems.

Product size of Underground power connector


Product order guide

FQ  14 —  4  T  K  Q  6  S

    1    2        3   4  5    6   7  8

1.Name:FQ series connector

2.Shell size: 14,18,24,30

3.Number of contacts: 2,3,4,5,6,7,8,9,12,19,26,32,42,50

4. T—plug,Z—receptacle

5.,K-female pin ,J-malepin

6.Q-straight (NO WRITE),W- angle

7.Spring size: 6,8,10,12,14,16

8.S-Plastic dust cover(only for receptacle)


Product FAQ of Underground power connector

1. Can I have a sample order?

Yes, welcome sample order of Underground power connector to test and check quality.

2.What is your terms of payment?

Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.

3.What is the lead time?

It usually takes 10 days after received the advance payment.

4. What is your terms of packing?

it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.

5. How long is the warranty period

One year after delivery.
