Metro sensor connector
Established in 1999, Ningbo ACIT provides professional Metro sensor connector design, technical consulting and great quality integrated production services. In the spirit of providing the best service to customers, Ningbo ACIT has been working hard, improving and surpassing in the various industries it operates in. our products are widely used in motor vehicles, new energy, industrial control, medical electronics, consumer electronics and other related fields. From sourcing, product ordering, R&D and manufacturing to after-sales service, Ningbo ACIT is your trusted partner for wire harnesses and cables.
Send Inquiry
Product Description

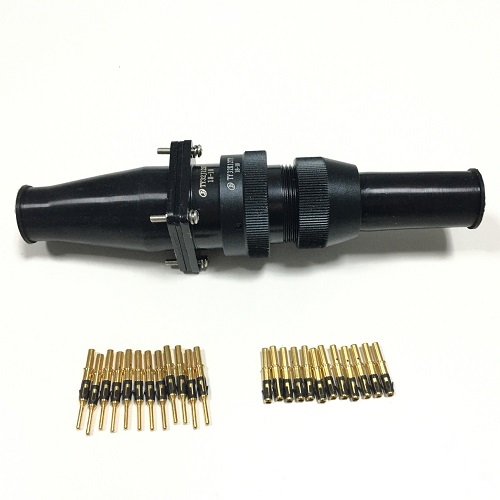

Ningbo ACITMetro sensor connector usehighly reliable hyperbolic steel wire spring holes as contacts, the main technical indicators of the product comply with the Ministry of Railways OFS TB/T2716-1996 standard.Ningbo ACIT With more than 20 years of technical experience and strong production capacity, the factory has established a complete production order process and has a stock of commonly used materials that can be used to reduce costs and provide customers with quick solutions and short delivery times.
Technical characteristics
|
工作温度Temperature |
-55℃ ~ +125℃ |
||||
|
工作电流Working current |
1.6-10A ，2.4-25A |
||||
|
工作电压Working voltage |
500V |
||||
|
接触电阻Contact resistance |
1.6≤0.005Ω ,2.4≤0.0025Ω |
||||
|
壳体材料Shell material |
Aluminum |
||||
|
绝缘材质Insulator material |
TPU |
||||
|
接触件材质Contact material |
Gold plated brass |
||||
|
机械寿命Endurance |
500 Cycles |
||||
|
接触件直径 Contactϕ |
工作电流 current |
工作电压 Voltage |
接触电阻 |
||
|
01.5mm镀金 |
10A |
500V |
≤2.5mQ2 |
||
|
02mm镀银 |
20A |
500V |
≤1.3mQ |
||
|
工作环境 Environment |
耐电压 Voltage proof |
绝缘电阻 Insulation resistance |
|||
|
正常 |
2500V |
≧1000MQ |
|||
|
湿热 |
1250V |
≧20MQ |
|||
Product Feature And Application
Metro sensor connectors have the characteristics of small contact resistance, soft insertion force, vibration resistance and shock resistance, high reliability and so on. The connection way is bayonet type quick connection, which is simple to use and easy to operate, and the products are widely used in the connection of railways, electricity and other electrical and electronic equipment., plugs and sockets can be loaded with both pins and holes according to customer’s requirements.
Product quality and Certificate
The warranty period o fMetro sensor connector is one year. it can be replaced free of charge if it has quality problems.
Product size of Metro sensor connector
Product order guide
TY — 4 T K B
1 2 3 4 5
1.Name：JL5 series connector
2.Number of contacts： 4,7,14,19
3. T—plug，Z—receptacle
4.,K-female pin ,J-malepin
5.B-panel receptacle ,L-cable receptacle
Product FAQ of Metro sensor connector
1. Can I have a sample order?
Yes, welcome sample order ofMetro sensor connector to test and check quality.
2.What is your terms of payment?
Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.
3.What is the lead time?
It usually takes 10 days after received the advance payment.
4. What is your terms of packing?
it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.
5. How long is the warranty period
One year after delivery.
