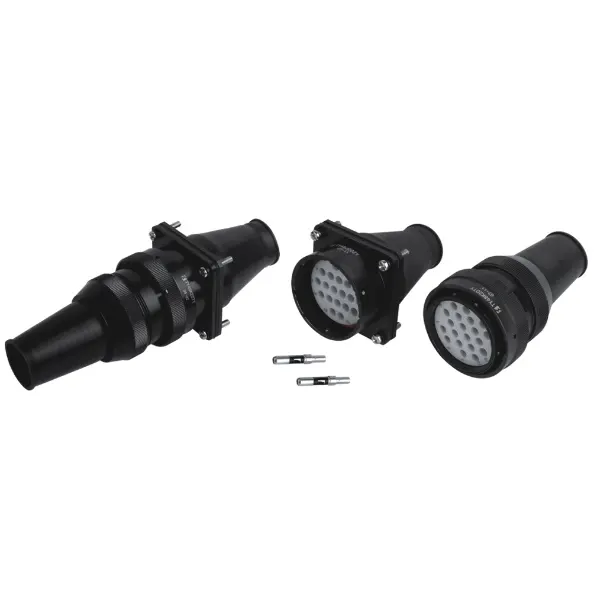

High Speed Power Connector
  • High Speed Power ConnectorHigh Speed Power Connector

High Speed Power Connector

Ningbo ACIT Electronics is China manufacturer & supplier who mainly produces High Speed Power Connector with many years of experience. our connector have a high quality and good price, they are exporting to other countries above 20 years. most of our customers are satisfied with our quality, price and service.TY series connector is High speed power sensor connector.

Send Inquiry

Product Description

China High Speed Power Connector Factory Directly Supply. Ningbo ACIT is High Speed Power Connector manufacturer and supplier in China. TY Series High speed power sensor connectors use highly reliable hyperboloid wire spring holes as contacts , The main technical indicators of the product conform to the standard OFS TB/T2716-1996 of the Ministry of Railways.

Technical characteristics

Temperature
-55℃ ~  +125℃
Working current
1.6-10A  ,2.4-25A
Working voltage
500V
Contact resistance
1.6≤0.005Ω ,2.4≤0.0025Ω
Shell material
Aluminum
Insulator material
TPU
Contact material
Gold plated brass
Endurance
500 Cycles

Product Feature And Application

TY Series High speed power sensor connectors have the characteristics of small contact resistance, soft insertion force, vibration resistance and shock resistance, high reliability and so on. The connection way is bayonet type quick connection, which is simple to use and easy to operate, and the products are widely used in the connection of railways, electricity and other electrical and electronic equipment., plugs and sockets can be loaded with both pins and holes according to customer’s requirements.

Product quality and Certificate

The warranty period of high speed rail sensor connector is one year. it can be replaced free of charge if it has quality problems.

Product size of High speed rail power Connector

Product order guide

TY   —  4    T   K  B

          1        2   3    4  5

1.Name:JL5 series connector
2.Number of contacts: 4,7,14,19
3.T—plug,Z—receptacle
4.K-female pin ,J-male pin
5.B-panel receptacle ,L- cable receptacle


Product FAQ of High speed rail power Connector

1.Can I have a sample order?
Yes, welcome sample order of high speed rail power connector to test and check quality.

2.What is your terms of payment?
Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.

3.What is the lead time?
It usually takes 10 days after received the advance payment.

4.What is your terms of packing?
it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.

5.How long is the warranty period
One year after delivery.
