High Speed Signal Connector
  • High Speed Signal ConnectorHigh Speed Signal Connector

High Speed Signal Connector

Ningbo ACIT is a professional manufacturer of H series connectors in China. ACIT independent research and development, production, factory direct sales model to ensure the quality of products, but also to create a very competitive price for customers.High speed signal connector technical indicators are in line with the national railway ministry standard TB/T2761 and have been certified by the National Explosion-proof Manned Center as ExnAII T4.

Send Inquiry

Product Description

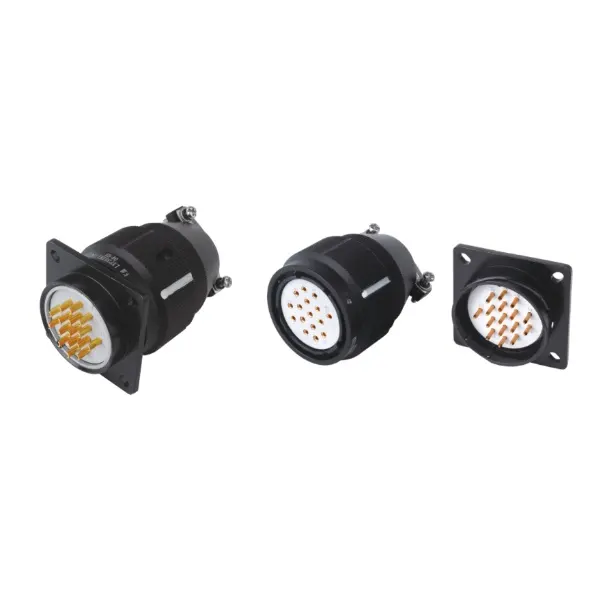

Product Introduction of High speed signal connector

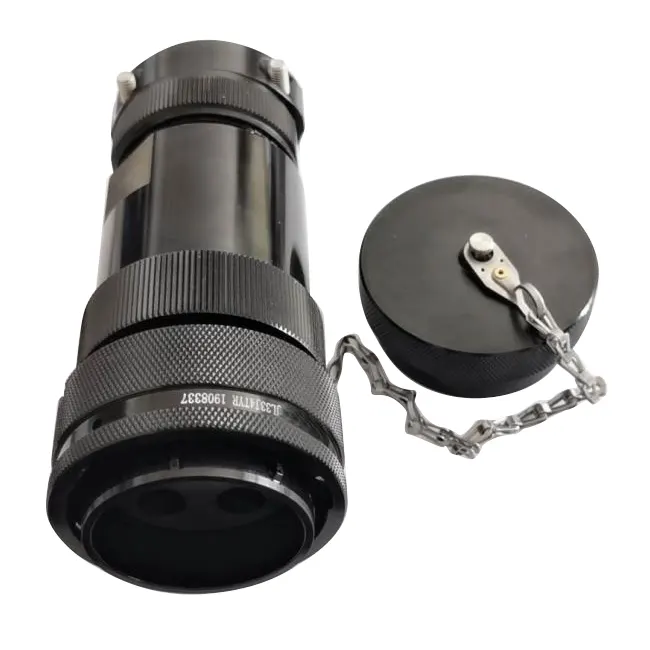

Ningbo ACIT High speed signal connector i is a high quality circular high current rail connector. The product adopts bayonet type quick connection, easy to operate, and is widely used in electrical and electronic equipment in railroad, electric power and other sectors with high requirements for electrical connection. The front face of the socket is equipped with a sealing cap and the plug is fully sealed .Product pins and holes can be interchanged according to your requirements.

Technical characteristics

Temperature

 -40℃~  +55℃

Relative Humidity

40±2℃

Vibration

10-200HZ

Shock

10-40 strokes/min

Working current

60A

Working voltage

380V(AC)

Contact resistance

≤0.5Ω

Resistance Insulation

≥2000MΩ

Endurance

1000 cycles

Shell material

Aluminum

Insulator material

PBT

Contact material

Gold or silver plated brass


Product Feature And Application

High speed signal connector adopts the technical and highly reliable hyperbolic wire spring hole structure, which has the characteristics of low contact resistance, soft plugging force, anti-vibration and shock resistance, water proof and high reliability.

Product quality and Certificate

The warranty period of high speed signal connector  is one year. it can be replaced free of charge if it has quality problems.

Product size of High speed signal connector



6. Product order guide


JL   —  33    J   20  Z   Y

          1           2      3    4   5   6



Name:JL series connector

Shell:33

K-female pin ,J-male pin

Number of contacts: 4,20,26,31,37

T—plug,Z—receptacle

End connection form:Y-Crimp

Product FAQ of High speed signal connector

1. Can I have a sample order?

Yes, welcome sample order of high speed signal connector to test and check quality.


2.What is your terms of payment?

Usually, we accept T / T, For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.


3.What is the lead time?

It usually takes 10 days after received the advance payment.


4. What is your terms of packing?

it is packed in plastic bag firstly, and then in small box, finally in big in neutral cartons.


5. How long is the warranty period

One year after delivery.
