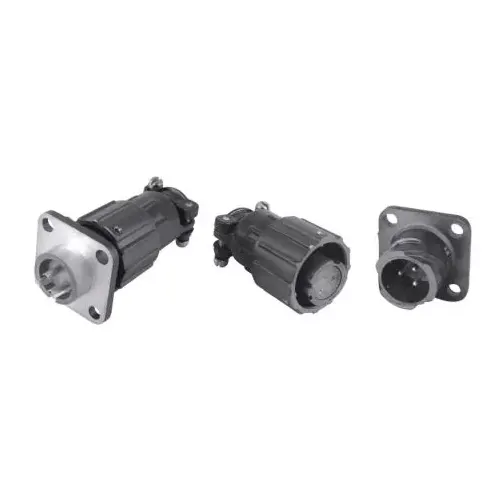

Cable Waterproof Connector
Ningbo ACIT Electronics Co., Ltd. is a professional manufacturer of waterproof cable connectors, with more than 20 years of production and sales experience in the electronic connector industry. We have several production lines for mass production, and a research and development department to customize products according to customer needs. Cable Waterproof connector according to the Ministry of Electronic Industry standard SJ1744-81 .
Send Inquiry
Product Description
The price of Ningbo ACIT Cable Waterproof connector is reasonable and the quality is guaranteed .The products manufactured according to Electronic Industrial Department standard SJ1744-81. advanced product structure, easy to operate. The pin and jack leads adopt the form of welding. We have the goods in stock can ship it directly.
Technical characteristics
|
Temperature |
-55C~+100C |
|||
|
Relative Humidity |
98% at 40C |
|||
|
Vibration |
10-2000HZ，150m/s |
|||
|
Shock |
500m/s2 |
|||
|
Constant Acceleration |
Discontinuity1μs |
|||
|
Atmosphere |
1 Kpa |
|||
|
Temperature Rise |
< +50°C |
|||
|
Endurance |
500 cycles |
|||
|
Whole Contact Resistance |
≥0.1Ω |
|||
|
Shell material |
Aluminum |
|||
|
Insulator material |
PBT |
|||
|
Contact material |
Gold or silver plated brass |
|||
|
Endurance |
500 Cycles |
|||
|
Contact |
Current |
Voltage(≤400HZ) |
Contact resistance |
|
|
≥3.5mm |
2.8mm |
|||
|
1mm |
3A |
400V |
500V |
0.005Ω |
|
1.5mm |
10A |
400V |
500V |
0.0025Ω |
|
2.5mm |
25A |
400V |
500V |
0.001Ω |
|
Test voltage |
|
|
|
Contact spacing |
Norma |
Moisture test |
|
≥3.5mm |
1500V |
1000V |
|
28mm |
1200V |
800V |
|
Test voltage under low pressure |
||
|
Atmosphere (Kpa) |
contact spacing |
|
|
|
≥35mm |
2.8mm |
|
1000V |
46.7 |
730V |
|
500V |
8.5 |
400V |
|
400V |
4.4 |
300V |
|
300V |
2 |
250V |
|
250V |
1 |
200V |
|
Normal |
High temperature |
Moisture test |
|
≥5000(MΩ) |
≥500(MΩ) |
≥100(MΩ) |
Product Feature And Application
Cable Waterproof connector is quick plug-in plug,and small in size, light in weight, fast connected with bayonet, simple and easy to use, pin and jack lead are welded.According to the user's needs, the plug and socket can be loaded with pins or holes.
Product quality and Certificate
The warranty period of Cable Waterproof connector is one year. it can be replaced free of charge if it has quality problems.
Product size of Cable Waterproof connector
Product order guide
Q — 14 J/K 2 A P/PP ---- J S/X
1 2 3 4 5 6 7 8
1.Series：Q
2.Matching Dia of Receptacle: 14,16,22,24,30
3.Contacts Style:K-Socket ,J- pin
4.Number of contacts： 4,7,10,19
5.A:receptacle,WithoutA:plug
6.P:Standard PP:Extension
7.J:AU-plate gold, Without J:AG-silver
8.S:Plastic dust cover, X-Rubber dust cover
